6.3G RADAR LEVEL METER
GRD60 series sensors are advanced radar level meter, measuring distance maximum 30 meters, can be used to storage. tanks, intermediate buffer tank container or process level measurement, 4 ~ 20 ma output analog signal.

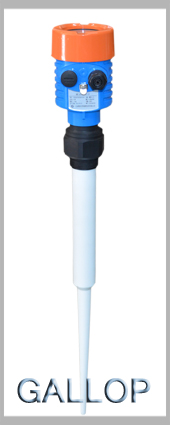

| ◇MEDIUM：liquid, corrosive liquid ◇APPLICATION：water level measurement; Volatile small ph level measurement; Pulp material level measurement ◇EXPLOSION LEVEL： Exd ⅡC T6 Gb ◇PROTECTION：IP67 ◇RANGE：15m ◇ANTENNA ：rod antenna (PP/PTFE). ◇FREQUENCY：6.3GHz ◇TEMPERATURE：- 40 ~120 ℃ ◇ACCURACY：±10mm ◇PRESSURE：-0.1 ~ 0.3 MPa ◇OUTPUT: （4-20）mA/HART ◇VOLTAGE: two wire ( DC24V ) /four wire ( DC24V/AC220V) . ◇REPEATABILITY: ±1mm ◇PROCESS CONNECTION : flange ( optional ) /thread . |
GRD601 |

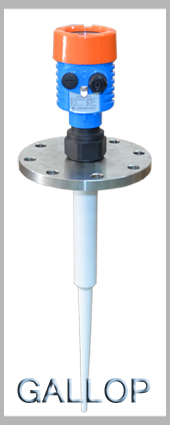

| ◇MEDIUM：liquid, especially suitable for the corrosive liquid. ◇APPLICATION:Waste water level measurement, Pulp material level measurement Volatile small ph level measurement. ◇EXPLOSION LEVEL： Exd ⅡC T6 Gb ◇PROTECTION：IP67 ◇RANGE：15m ◇ANTENNA ：rod antenna (PP/PTFE). ◇FREQUENCY：6.3GHz ◇TEMPERATURE：- 40 ~150 ℃ ◇ACCURACY：±10mm ◇PRESSURE：-0.1 ~ 1.6 MPa ◇OUTPUT: （4-20）mA/HART ◇VOLTAGE: two wire ( DC24V ) /four wire ( DC24V/AC220V) ◇REPEATABILITY: ±1mm ◇PROCESS CONNECTION : Flanging flange (optional), |
GRD602 |

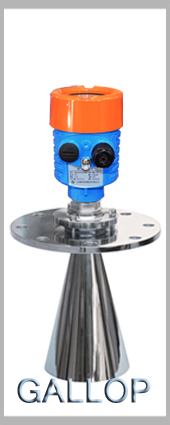

| ◇MEDIUM：liquid, especially suit for pressure liquid . ◇APPLICATION：Crude oil, light oil level measurement, aluminum hydroxide level measurement,raw coal, limestone position measurement, coke material level measurement, ◇EXPLOSION LEVEL： Exd ⅡC T6 Gb ◇PROTECTION：IP67 ◇RANGE：30m ◇ANTENNA ：Horn antenna. ◇FREQUENCY：6.3GHz ◇TEMPERATURE：- 40 ~250 ℃ ◇ACCURACY：±10mm ◇PRESSURE：-0.1 ~ 4.0 MPa ◇OUTPUT: （4-20）mA/HART ◇VOLTAGE: two wire ( DC24V ) /four wire ( DC24V/AC220V) . ◇REPEATABILITY: ±1mm ◇PROCESS CONNECTION : flange (optional), |
GRD603 |

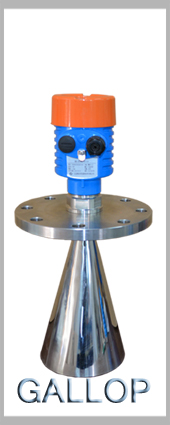

| ◇MEDIUM： solid particles or pieces of material, not applicable to solid powder. ◇APPLICATION： piece of lime material measurement; Raw coal level measurement ◇EXPLOSION LEVEL： Exd ⅡC T6 Gb ◇PROTECTION：IP67 ◇RANGE：30m ◇ANTENNA ：horn antenna ◇FREQUENCY：6.3GHz ◇TEMPERATURE：- 40 ~250 ℃ ◇ACCURACY：±20mm ◇PRESSURE：-0.1 ~ 0.1 MPa ◇OUTPUT: （4-20）mA/HART ◇VOLTAGE: two wire ( DC24V) /four wire ( DC24V/AC220V) . ◇REPEATABILITY: ±1mm ◇PROCESS CONNECTION : universal flange (optional), |
GRD604 |
| ◇APPLICATION:20% of flour paste pot measurement, with mixing liquid measurement ◇EXPLOSION LEVEL： Exd ⅡC T6 Gb ◇PROTECTION：IP67 ◇RANGE：20m ◇ANTENNA ：horn antenna ◇FREQUENCY：6.3GHz ◇TEMPERATURE：- 40 ~250 ℃ ◇ACCURACY：±10mm ◇PRESSURE：-0.1 ~ 4.0 MPa ◇OUTPUT: （4-20）mA/HART ◇VOLTAGE: two wire ( DC24V ) /four wire ( DC24V/AC220V) . ◇REPEATABILITY: ±1mm ◇PROCESS CONNECTION : flange (optional) |
GRD605 |
