INTEGRATED ULTRASONIC LEVEL METER




Two wire LCD displayThree/four wire LCD displayAnti-corrosion type
Explosion proof type


IMain Technical Parameters


Range

0~30m

Accuracy

±0.25%F·S     ±0.5F·S

Resolution ratio

≥10m,5mm       10m,1mm

Beam angle

<10@3dB

Frequency

~40KHZ

Dead zone

0.3~0.7m

Voltage

24VDC \220VAC

Output

two wire

4-20mA

three wire

4-20mAtwo way programmable control, communication

Man-machine handshake

LCD displaybutton

Temperature compensation

The chip/sensor compensation

Environment temperature

-20~+60

Working temperature

-30~+80

Pressure

0.5~2BAR

Installation connection

M66X3

Process connection

PG13.5

Protection grade

IP66

Shell material

ABS\PA6 GF30

Weight

1.1KG

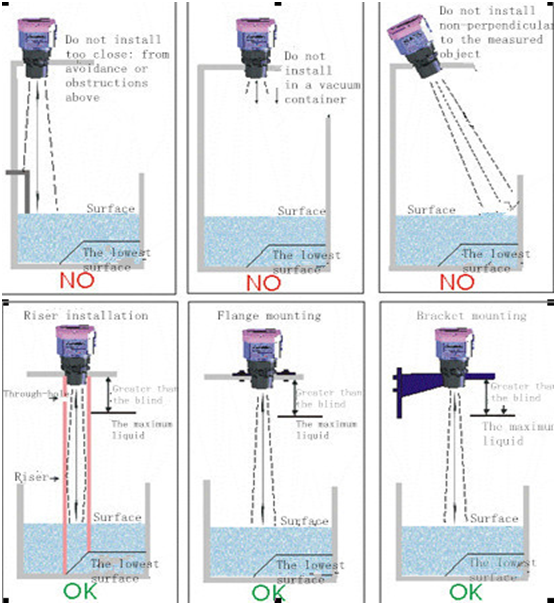

IIInstalltion

1. Material level transmitter should be installed in place no vibration and strong electromagnetic interference.

2The container to avoid stirring, complicated situations or with guided wave tube.

3Installation location should chose convenient construction and maintenance.

4Installed side such as feed, escalators etc. Effective distance should be staggered.

5Outdoor installation should add shield.





III、Instrument size



IV、 Wiring diagram.


TWO WIRES WIRING DIAGRAM

THREE WIRES WIRING DIAGRAM



*Explosion proof type is two wire ,it should equip the security gate when using it.

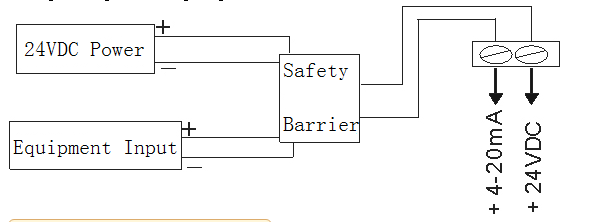

V、Explosion proof wiring diagram.
